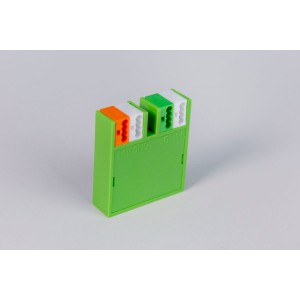

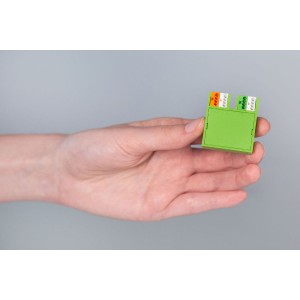

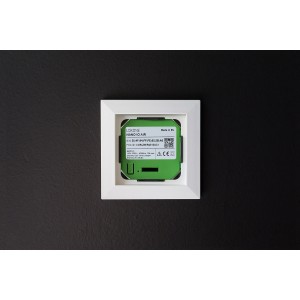

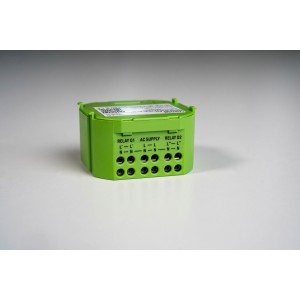

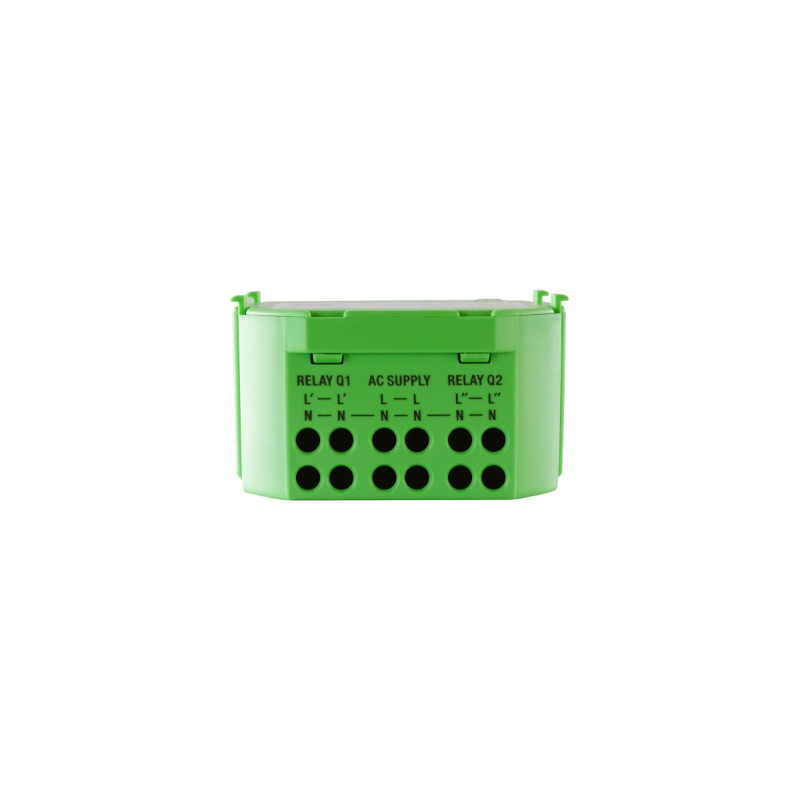

| Power Supply |
110 ... 230VAC, 50/60Hz or 20 ... 26VDC |
|---|---|
| Power consumption |
typ. 0.5W / max. 1.2W (with NFC Code Touch for Nano) @ 230VAC typ. 0.4W / max. 1W (with NFC Code Touch for Nano) @ 24VDC |
| Max. inrush current | 15 A |
| Inputs |
6 digital inputs 24VDC logic 0: 0 ... 5VDC undefined: 5 ... 7VDC logic 1: 7 ... 24VDC Ri= 31kΩ 24VDC output, max. 1W |

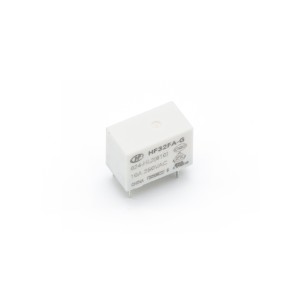

| Outputs |
2 digital outputs (switching supply voltage) 5A at cosφ=1 |
| Power loss at max. load | 2.6 W |
| Temperature | 0 ... 35°C / 32 ... 95°F |
| LOXONE Air |
868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna |
|---|
| Humidity | max. 95% r.H. (non condensing) |
|---|
| Wire cross-section |
Power supply & Relay outputs:1 ... 2.5mm² / AWG17 ... 13 Digital inputs: 0.14 ... 1mm² / AWG26 ... 17 |
|---|---|
| Stripping length |
Power supply & Relay outputs: 6mm / 0.24” Digital inputs: 3.5mm / 0.14” |
| Temperature resistance |
Power supply & Relay outputs: min. 70°C / 158°F Digital inputs: min. 70°C / 158°F |
| Max. wire length | Digital Inputs: 3m |

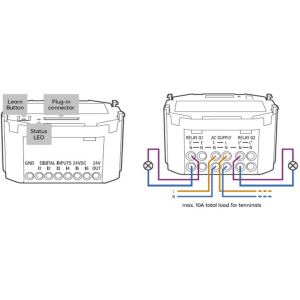

| Connection Diagram |
|

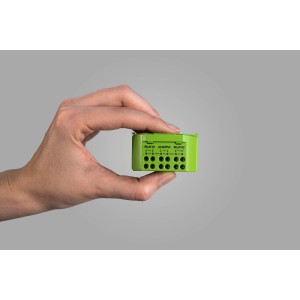

|---|
| Colours | Green: RAL 6018 |
|---|---|
| Finish | Matte |
| Net weight | 56g |
|---|---|
| Total weight | 79 g |
| Product dimensions | 53x52x29mm / 2.09x2.05x1.14” (LxWxH) |

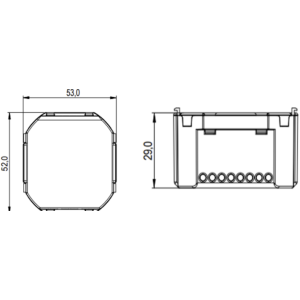

| Product dimensions drawing |
|
| Pack size | 88x95x33mm / 3.46x3.74x1.30” (LxWxH) |
| Safety class | IP20 |
|---|
