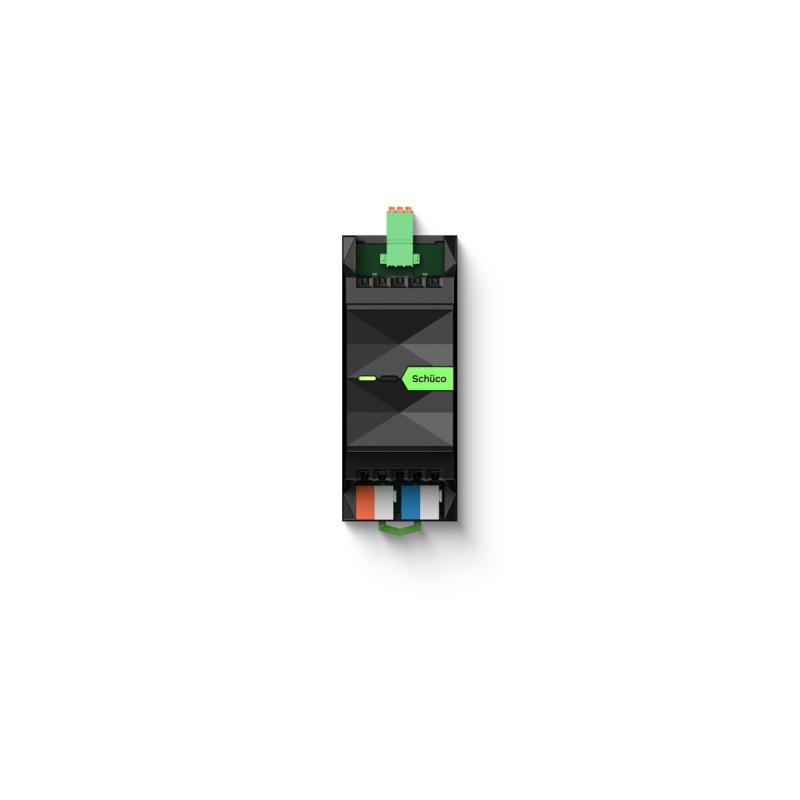

Name: Schüco Extension
Brand: Loxone
SKU: 100457
Price: 8932 CZK
Availability: InStock

Reference 100457

Brand Loxone

Kč7,381

Tax excluded

Kč1,550 Tax

Kč8,932 Tax included

Quantity

In stock: 7 Items

Product Details

Reference 100457

In stock 7 Items

Data sheet

Product Characteristics: Colours: Black: RAL 9005
Electrical Specifications: Supply voltage: 9 … 28 V DC
Electrical Specifications: Power consumption: max. 0.06 W
Electrical Specifications: Power loss at max. load: 0.06 W
Interfaces: LOXONE Link: Connection with Miniserver
Ambient Conditions: Temperature: -40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP20
Connection Terminals: Terminal type: 24 VDC & LOXONE Link; Interface; DG220B; -
Connection Terminals: Wire cross-section: 0.25 … 0.8 mm² / AWG 23 … 18; 0. 8 mm² / AWG 18
Connection Terminals: Stripping length: 5 mm / 0.2"; 7 mm / 0.28"
Connection Terminals: Temperature resistance: -40 … 105 °C / -40 … 221 °F; min. 80 °C / 176 °F for IEC, ; min. 75 °C / 167 °F for UL
Product Characteristics: Mounting type: DIN rail according to EN 50022, 35 mm
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 65 g
Weight & Dimensions: Product dimensions: 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units
Interfaces: Schüco Unit Bus: max. 30 devices; max. 500 m wire length

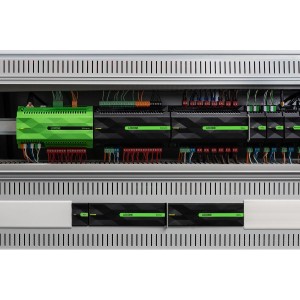

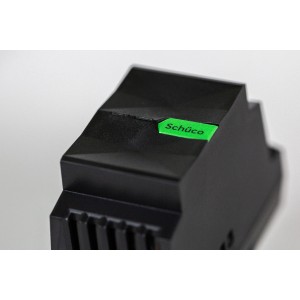

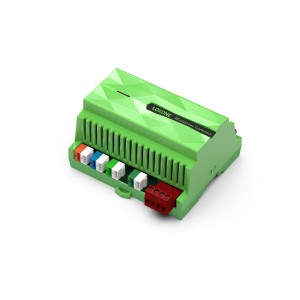

Schüco Extension umožňuje integrovat až 30 prvků Schüco TipTronic SimplySmart jako jsou okna nebo posuvné dveře. Díky tomuto Extensionu je možné automaticky otevírat, zavírat, zastavovat a sklápět okna či posuvné dveře. Dostanete také zprávu o aktuální šířce otvoru nebo stavu uzamknutí.

*Předtím, než se prvky Schüco naučí, je potřebné je nakonfigurovat pomocí softwaru Schüco ETA.

Podporovaná zařízení:

TipTronic OL/Kipp
TipTronic Dreh LS
TipTronic Dreh RS
TipTronic tilt and turn LS
TipTronic tilt and tilt RS
TipTronic tilt and tilt
TipTronic OpenOut tilt and fold
TipTronic OpenOut PAF (Master)
TipTronic OpenOut PAF (Slave)
TipTronic NRWG Kipp
TipTronic NRWG Rotary LS
TipTronic NSHEV rotary RS
TipTronic NRWG folding
TipTronic NRWG OpenOut Lowering folding
Posuvné dveře ASE 60/80

Datasheet

Electrical Specifications

Supply voltage	9 … 28 V DC
Power consumption	max. 0.06 W
Power loss at max. load	0.06 W

Interfaces

LOXONE Link	Connection with Miniserver
Schüco Unit Bus	max. 30 devices max. 500 m wire length

Supported Devices

Device Types and Models	TipTronic OL/Tilt TipTronic Turn LS TipTronic Turn RS TipTronic TurnTilt LS TipTronic TurnTilt RS TipTronic TopHung TipTronic OpenOut TopHung TipTronic OpenOut PAF (Master) TipTronic OpenOut PAF (Slave) TipTronic NRWG Tilt TipTronic NRWG Turn LS TipTronic NRWG Turn RS TipTronic NRWG TopHung TipTronic NRWG OpenOut TopHung Sliding Door ASE 60/80

Ambient Conditions

Temperature	-40 … 70 °C / -40 … 158 °F
Humidity	max. 95 % RH (non-condensing)
Ingress protection	IP20

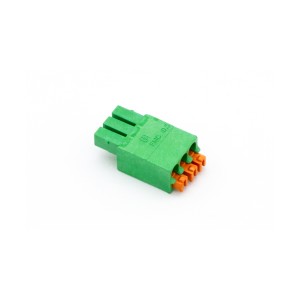

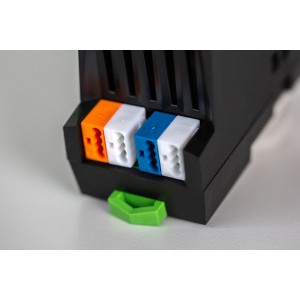

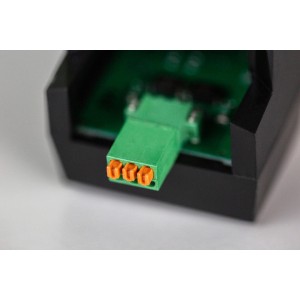

Connection Terminals

Terminal type	24 VDC & LOXONE Link Interface DG220B -
Wire cross-section	0.25 … 0.8 mm² / AWG 23 … 18 0. 8 mm² / AWG 18
Stripping length	5 mm / 0.2" 7 mm / 0.28"
Temperature resistance	-40 … 105 °C / -40 … 221 °F min. 80 °C / 176 °F for IEC, min. 75 °C / 167 °F for UL

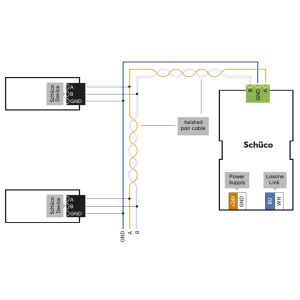

Connection Diagram

Connection Diagram

Product Characteristics

Mounting type	DIN rail according to EN 50022, 35 mm
Colours	Black: RAL 9005
Finish	Matte

Weight & Dimensions

Net weight	65 g
Total weight	85 g
Product dimensions	88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

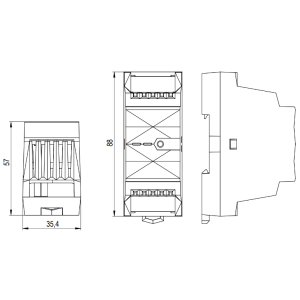

Product dimensions drawing
Pack size	121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H)
