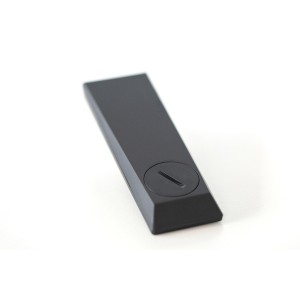

| Power Supply | CR2032 battery |
|---|---|
| Power consumption | typ. 3.5µA, max. 15mA |
| Power loss | max. 15mA |
| LOXONE Air |
LOXONE Air: 868MHz (SRD Band Europe), 4 channels available 915MHz (ISM Band Region 2), 10 channels available max. Power 3.16mW |
| Battery Lifetime | up to 2 years |
| Temperature | -20 ... 60°C / -4 ... 140°F |
| Touch points | 5 touch points |
| Humidity | max. 95% r.H. (non condensing) |
|---|

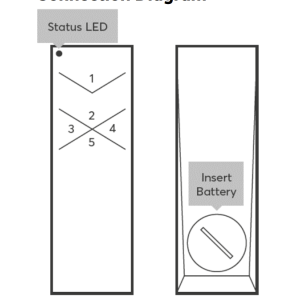

| Connection Diagram |
|
|---|
| Colours | Black: RAL 9005 |
|---|---|
| Finish | Matte |
| Net weight | 28 g |
|---|---|
| Total weight | 55 g |
| Product dimensions | 106x34x10.5mm / 4.2x1.34x0.41” (LxWxH) |
| Product dimensions drawing |
|
| Pack size | 123.5x84x27mm / 4.86x3.31x1.06” (LxWxH) |
| Safety class | IP20 |
|---|
| Položka | Množství |
|---|---|
| Lithiová baterie CR2032 | 1 |
| Příbalový leták | 1 |
