Data sheet

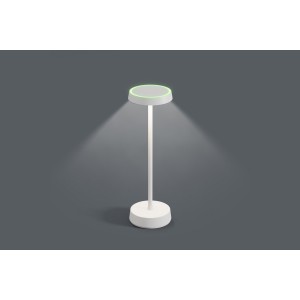

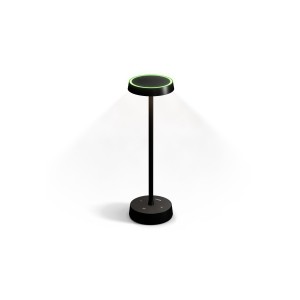

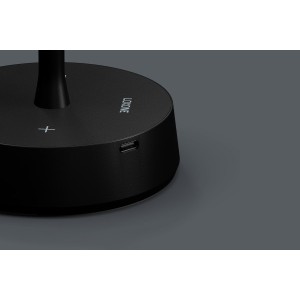

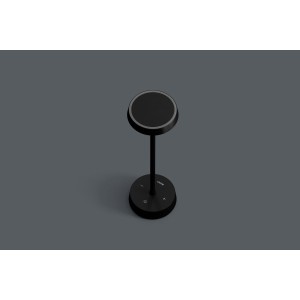

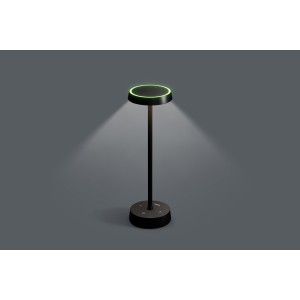

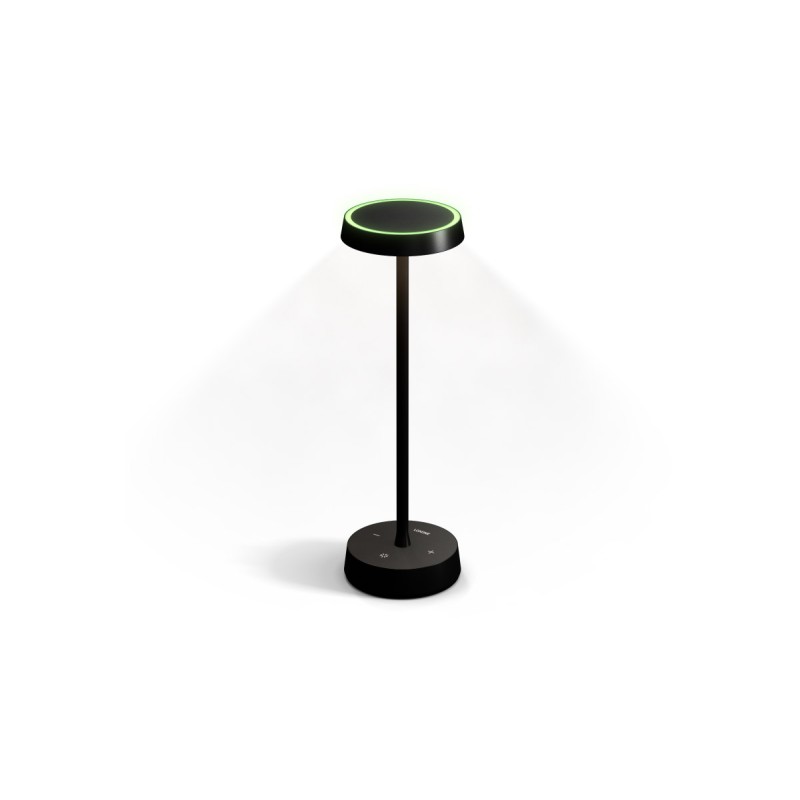

Table Lamp Air má flexibilní využití – ať už v obývacím pokoji, jako noční lampička nebo stylová stolní lampa v restauraci.
Prstenec s barevným světlem na horní straně je volně konfigurovatelný. To znamená, že jej lze snadno použít jako alarm nebo jako akcentové osvětlení. Při nabíjení svítí žlutě/zeleně.
| Power Supply | 5VDC via USB-C |
|---|---|
| Battery capacity | 10000mAh |
| Recommended charger | min. 10W |
| Power consumption (USB connected, battery full) |
Standby: 0.14W White LEDs: max. 4.16W RGB-Ring: max. 1.44W Combined: max. 5.6W |
| Power consumption while charging | max. 10W |
| Dimming range | 0 ... 100% |
| PWM frequency | 20kHz |
| Energy efficiency (EU) 2017/1369 | G |
| Touch points | 3 buttons, capacitive touch detection |
| LOXONE Air |
868MHz (SRD Band Europe), 4 channels, max. 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels, max. 13.2mW internal antenna |
| Colour temperature | typ. 3000k |
|---|---|
| Luminous flux (USB connected, battery full) | typ. 230lm |
| Colour rendering index (CRI) | min. 90 |
| Beam angle | 170° |

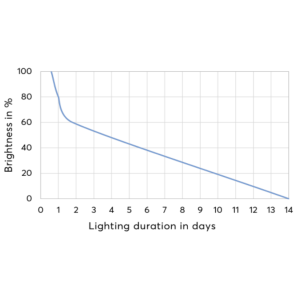

| Battery life diagram |
|
|---|
| Ambient temperature discharging | -20 … 40°C / -4 … 104°F |
|---|---|
| Ambient temperature charging | 0 … 40°C / 32 … 104°F |
| Humidity | max. 95 % RH (non-condensing) |

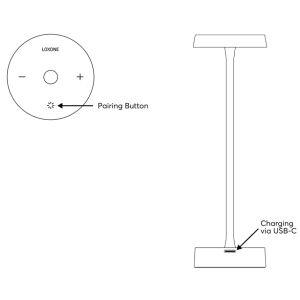

| Connection Diagram |
|
|---|
| Colours |
White: RAL9003 - Part No. 100550 Anthracite: RAL9005 - Part No. 100551 |
|---|---|
| Material | Alu and Plastic |
| Net weight | 448g |
|---|---|
| Total weight | 695 g |
| Product dimensions |
D: 100mm (3.94") H: 320mm (12.6") |

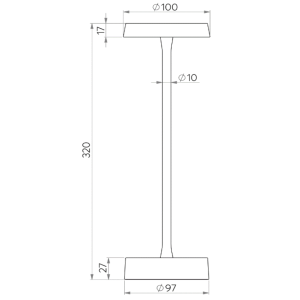

| Product dimensions drawing |
|
| Pack size | 377x140x119mm / 14.84x5.51x4.69” (HxWxD) |
| Safety class | IP20 |
|---|
| Položka | Množství |
|---|---|
| USB-C kabel | 1 |
| Příbalový leták | 1 |
