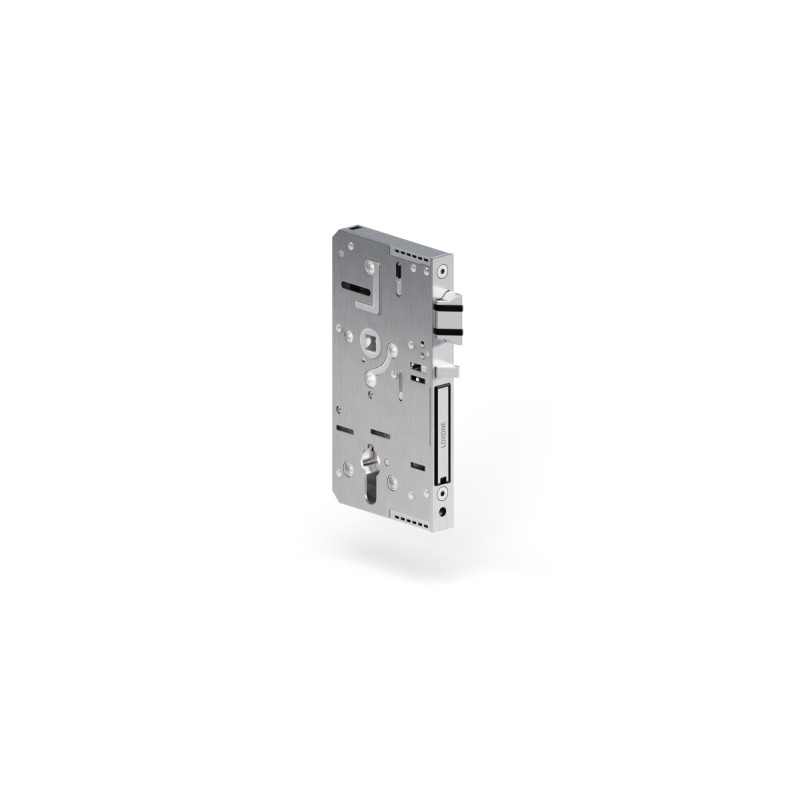

Door Lock Air Battery for Glass Doors

Name: Door Lock Air Battery for Glass Doors
Brand: Loxone
SKU: door-lock-air-battery-for-glass-doors
Price: 11955 CZK
Availability: OutOfStock

Reference door-lock-air-battery-for-glass-doors

Brand Loxone

Kč9,880

Tax excluded

Kč2,075 Tax

Kč11,955 Tax included

Quantity

Out-of-Stock

Product Details

Reference door-lock-air-battery-for-glass-doors

Data sheet

Ambient Conditions: Temperature: -20 … 50 °C / -4 … 122 °F
Ambient Conditions: Humidity: max. 80 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP20
Interfaces: LOXONE Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna
Technical Specifications: General: Automatically locking panic lock; Latch bolt; Auxiliary latch
Power Supply: Battery Lifetime: up to 2 years
Power Supply: Battery type: 2x 1.5 V AAA batteries
Weight & Dimensions: Backset Options: 55 mm
Weight & Dimensions: Centres (distance between spindle and cylinder): PZ 72 mm
Weight & Dimensions: Latch Bolt with Silent Insert: 20 mm projection
Weight & Dimensions: Spindle Square: 9 mm
Technical Data: Locking: for profile cylinder (PZ)

Datasheet

Technical Specifications

General	Automatically locking panic lock Latch bolt Auxiliary latch

Technical Data

Locking	for profile cylinder (PZ)

Power Supply

Battery Lifetime	up to 2 years
Battery type	2x 1.5 V AAA batteries

Weight & Dimensions

Backset Options	55 mm
Centres (distance between spindle and cylinder)	PZ 72 mm
Latch Bolt with Silent Insert	20 mm projection
Spindle Square	9 mm

Interfaces

LOXONE Air	868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna

Ambient Conditions

Temperature	-20 … 50 °C / -4 … 122 °F
Humidity	max. 80 % RH (non-condensing)
Ingress protection	IP20

Položka	Množství
Baterie AAA	1
