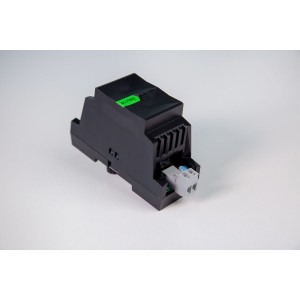

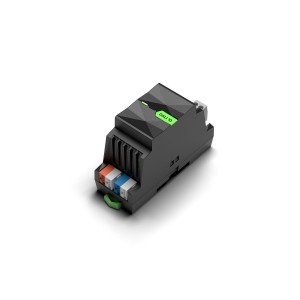

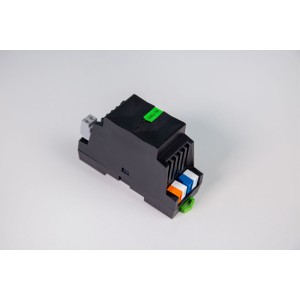

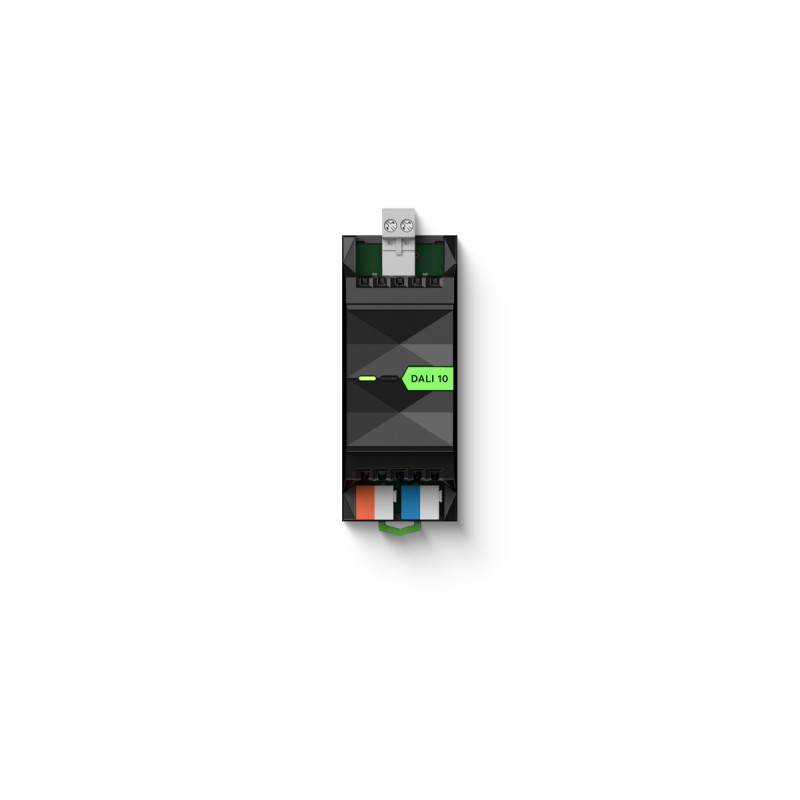

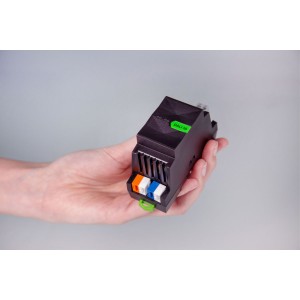

Data sheet
| Supply voltage | 12 … 28 VDC |
|---|---|
| Power consumption |
typ. 0.4 W (no bus load) max. 5.4 W (incl. 250 mA bus load) |
| Power loss at max. load | 1.4 W (at 250 mA bus load) |
| LOXONE Link | Connection with Miniserver |
|---|---|
| DALI |
DALI devices: max. 10 devices / 16 groups DALI types: supported DALI device types: 0-8; supported DALI-2 instance types: 1-4 Bus length: max. 300 m / 985 ft at 1.5 mm² Bus topologies: Bus, Line, Star, Tree Bus voltage: High: 16 V, Low: 0 V (typ.) Bus supply: guaranteed: 240 mA; max. 250 mA |
| Temperature | -40 … 55 °C / -40 … 131 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |

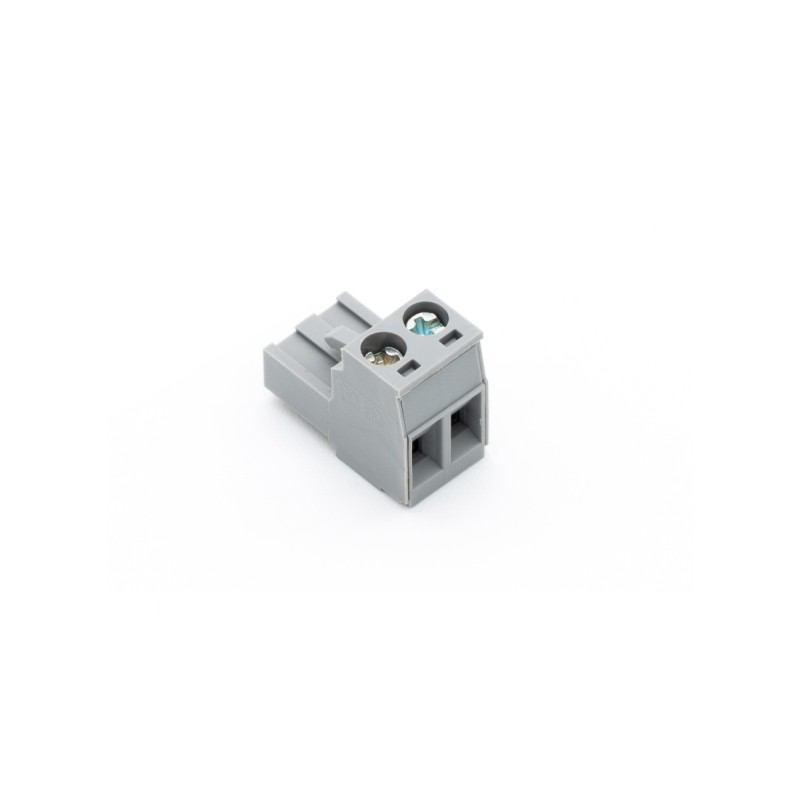

| Terminal type |
24 VDC & LOXONE Link Interface DG220B MSTB2.5 |
|---|---|
| Wire cross-section |
0.28 … 0.8 mm² / AWG 23 … 18 0.25 … 2.5 mm² / AWG 24… 12 |
| Stripping length |
5 … 6 mm / 0.2 … 0.24” 7 mm / 0.28" |
| Temperature resistance |
-40 … 105 °C / -40 … 221 °F -40 … 70 °C / -40 … 158 °F |

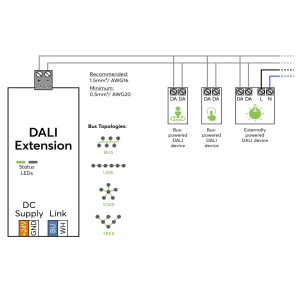

| Connection Diagram |
|
|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 68 g |
|---|---|
| Total weight | 87 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

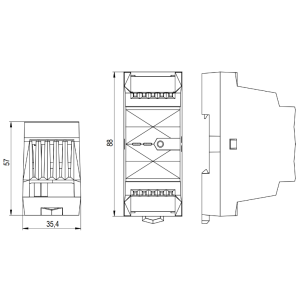

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
| Standards |
IEC 62368-1:2018 UL 62368-1:2019 Ed.3 CSA C22.2#62368-1:2019 Ed.3 |
|---|
