Data sheet
| Supply voltage | 9 … 28 V DC |
|---|---|
| Power consumption | max. 0.03 W |
| Power loss at max. load | 0.03 W |
| LOXONE Link | Connection with Miniserver |
|---|---|
| EnOcean |
Frequency: 868 MHz max. 128 devices |
| Temperature | 0 ... 50 °C / 32 ... 122 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Wire cross-section | 0.05 … 2.5 mm² / AWG 30 … 12 |
|---|---|
| Stripping length | 6 … 7.5 mm / 0.24 … 0.30” |
| Tightening torque | 0.5 … 0.6 Nm / 0.37 … 0.44 lbf·ft |
| Temperature resistance | -40 … 105 °C / -40 … 221 °F |

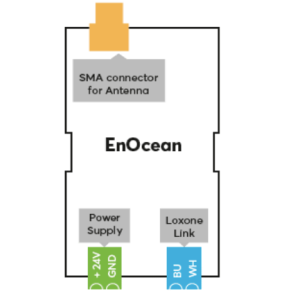

| Connection Diagram |
|
|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 65 g |
|---|---|
| Total weight | 85 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

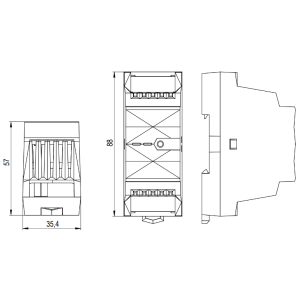

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
| Položka | Množství |
|---|---|
| Informační příloha | 1 |
